EDS Flight Controller V5.2 - EDS_AP_V52
₹0.00
Tax excluded
EDS Flight Controller V5.2 - EDS_AP_V52
Security Policy
We prioritizes security with encrypted transactions, secure servers, and robust data protection.
Delivery Policy
Timely delivery, transparent tracking, and reliable carriers ensure swift and secure shipping.
Return Policy
We Provide Refunds for the products which are undelivered or damaged before delivery.
| Parameters | Autopilot V5.2 | ||
| Board Size | 65*72mm | ||
| Weight | |||
| Processors | STM32F765, STM32F100 | ||
| Frequency | 216MHz | ||
| Flash | 2MB | ||
| Sensors | ICM-20689, BMI055, IST8310, MS5611 | ||
| Power | 4.3~ 5.4v | ||
| Connector Type | DF13 Type | ||
| UART | 5 | ||
| I2C Port | 3 | ||
| GPS UART | 2 | ||
| CAN Interface | 0 | ||
| Input Power | |||
| DF13 USB | Available | ||
| RSSI Input | PWM | ||
| RC Input | SBUS | ||
| An autopilot is a system used to control the path of a vehicle without requiring constant manual control by a human operator. Autopilots do not replace human operators. Instead, the autopilot assists the operator's control of the vehicle, allowing the operator to focus on broader aspects of operations. | |||

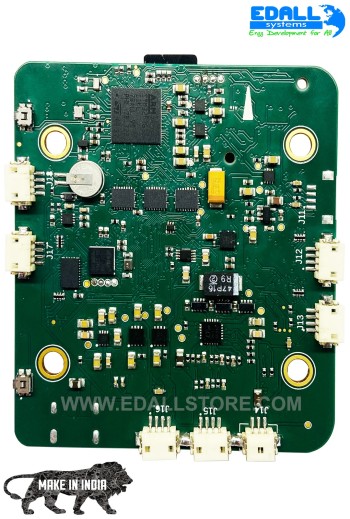

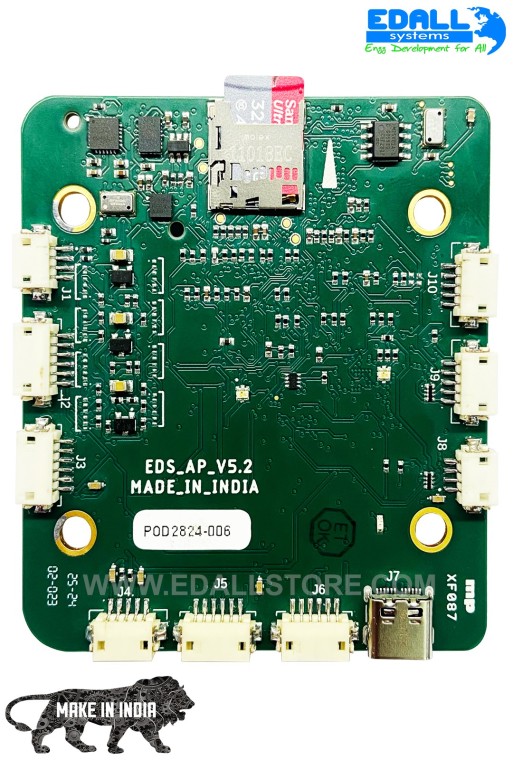

| EDS-AP Flight Controller | Drone Autopilot is an advanced autopilot manufactured by Edall Systems. The board is based on the Pixhawk FMUv5 design standard, the external interface uses the Pixhawk standard pinouts. The autopilot is compatible with both ArduPilot and Custom firmware.WH-AP is ideal for academic research and commercial systems integration. | |||
| Support RT K centimeter positioning, the flight Controller supports the RTK positioning module for precise centimeter positioning to meet your higher positioning requirements.(RTK positioning module needs to be purchased separately) Faster F 765 processor Autopilot selects the STM32F 765 processor with better performance. Its frequency is up to 216MHZ and it contains 2MB FLASH/512K RAM. The clock speed is higher, the RAM is larger, and the speed will be greatly improved. Multi-sensor redundancy combination, Built-in five sets of sensors, the flight controller monitors the multi-channel sensor data in real-time, and performs redundant switching immediately in the event of a fault, improving flight safety and stability. |
|||
EDS_AP_V52
