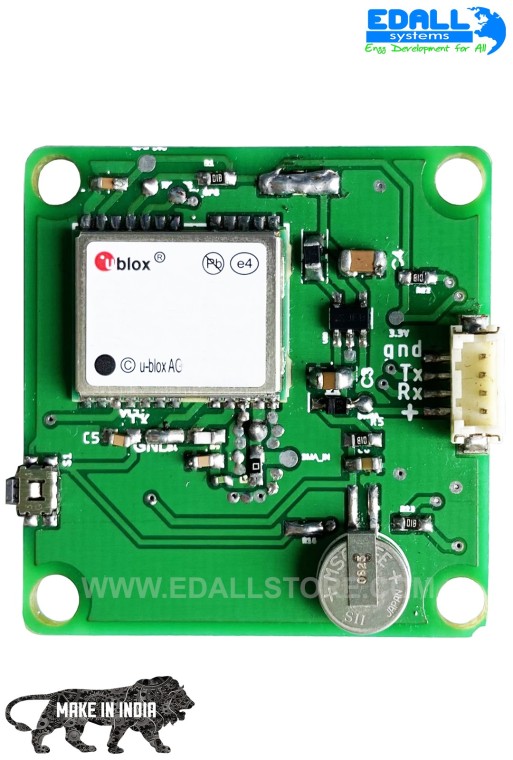

EDS M9N GPS - EDS-GPS-M9N

₹0.00

Tax excluded

White Hawk GPS - WH_GPS_M9N

Quantity

Contact-OEM-for-Order

Security Policy

We prioritizes security with encrypted transactions, secure servers, and robust data protection.

Delivery Policy

Timely delivery, transparent tracking, and reliable carriers ensure swift and secure shipping.

Return Policy

We Provide Refunds for the products which are undelivered or damaged before delivery.


	Parameter	EDS-GPS-M9N
	Device	Ublox M9N
	Protocol	UART
	Input Voltage	5V
	Current consumption	200ma
	Board size	35*35mm
	Connector Type	DF-13 4 Pin
	Image	Image1
	Inbuilt Compass	No
	Feature: Ublox M9N GNSS Reciever Accurate Positioning Fast Navigation Update Rate High-gain 25254mm antenna Ultra Bright UI RGB LED

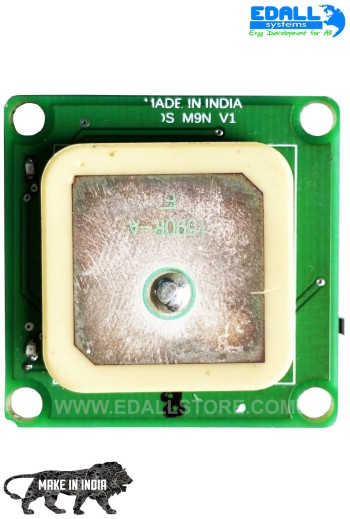

	The M9N GPS uses multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 (38400 previously). The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Reference EDS-GPS-M9N
