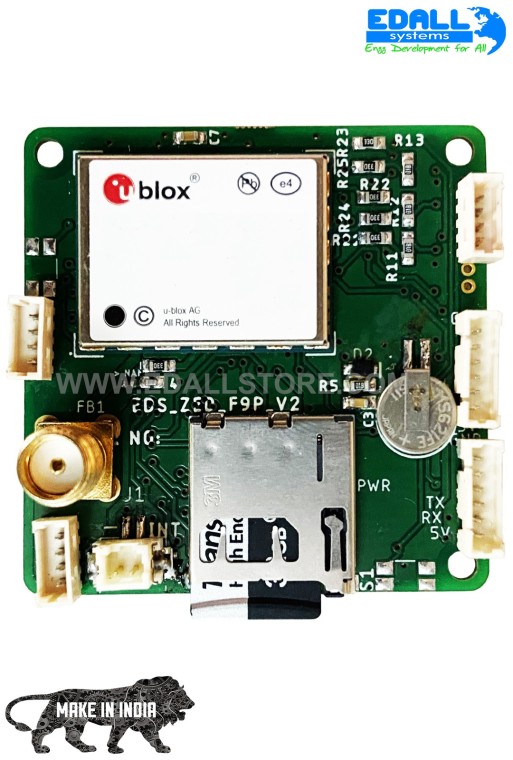

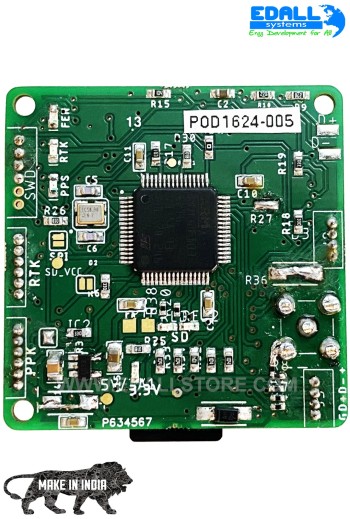

EDS RTK GPS - EDS-RTK-GPS

₹0.00

Tax excluded

Quantity

Contact-OEM-for-Order

Security Policy

We prioritizes security with encrypted transactions, secure servers, and robust data protection.

Delivery Policy

Timely delivery, transparent tracking, and reliable carriers ensure swift and secure shipping.

Return Policy

We Provide Refunds for the products which are undelivered or damaged before delivery.


	Parameter	EDS-RTK-GPS
	Device	Ublox ZedF9P
	Protocol	UART
	Input Voltage	5V
	Current consumption	200ma
	Board size	40*40mm
	Connector Type	DF-13 4 pin
	Image	Image1
	Inbuilt Compass	No
	Controller	STM32F103


	F9P Tough combined with Survey antenna can be used to setup RTK Base which can be used for sending corrections to RTK rovers in drones. The GenX RTK F9P Tough can receive and track multiple GNSS systems. With state of the art multi-band RF front-end architecture, all four major GNSS constellations (GPS, GLONASS, Galileo, and BDS) can be acquired simultaneously. All satellites in view can be processed to provide an RTK navigation solution when used with correction data from RTK base. The module communicates on multiple protocols like UBX, NMEA and RTCM and can be easily integrated with any modern flight controller. It can be configured for concurrent GPS, GLONASS, Galileo, BDS, QZSS, and SBAS reception to provide a high-performance position reporting and navigation solution. It provides exceptional sensitivity and acquisition times, and interference suppression measures enable reliable positioning even in difficult signal conditions.

Reference EDS-RTK-GPS
